Flow Segmentation

FlowSeg is a product family to easily control the flow of any number of gases and fluids. The flows can be separate, or mixed together to form one or more dynamic mixtures with wide ranges.

These flows and mixtures can be controlled in "immediate" mode, or they will perform preprogrammed segments to form plateaus, ramps and steps.

At any time, all details are shown and logged, including but not restricted to: flows in any volumetric unit (also in custom user specified conditions), as mass, all partial pressures, relative humidity, absolute humidity.

Flowseg software controls all devices with volumetric, mass, and partial pressure information on all components at any time.


The system is modular, allowing user to add just as many devices to control gases and fluids as is needed, and to obtain more compatible devices at later time if and when needed.


Key features at a glance:

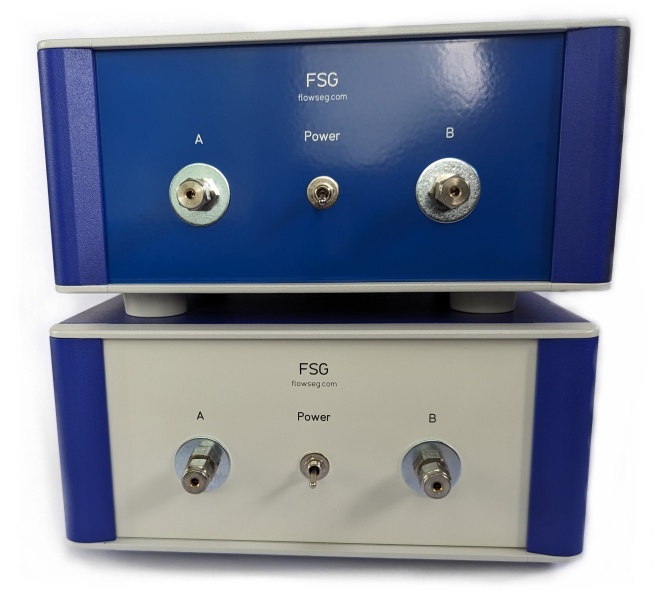

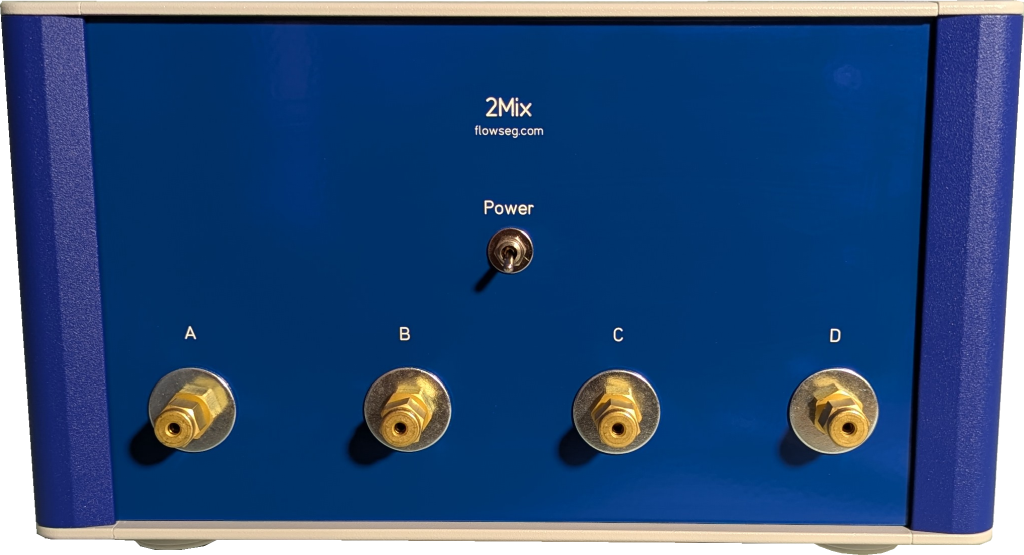

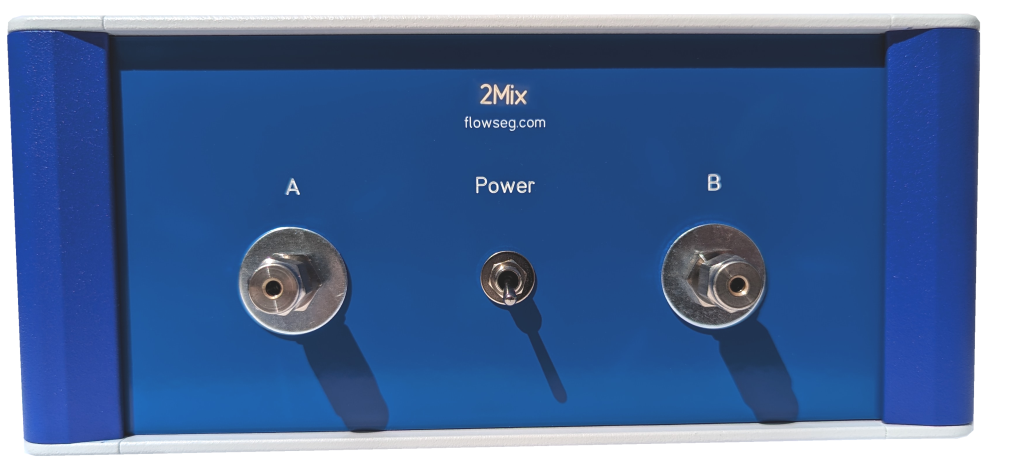

2Mix = Gas

2WetAny number and all types gases: elemental, both pre-made and dynamic mixtures. Default device: Any non-corrosive gases, two gas lines. Options for corrosive gases, high pressures, and additional gas lines.

Gas flows from 0.000 05 sccm to 10000 slpm (per gas line)

Any number of input gases controlled separately or combined into a mixture

Pressures: Default 11 bar, option for 22 bar.

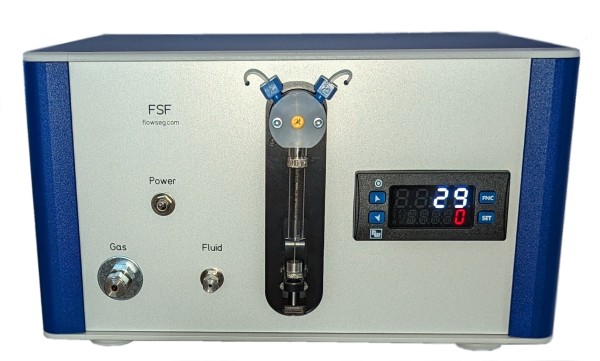

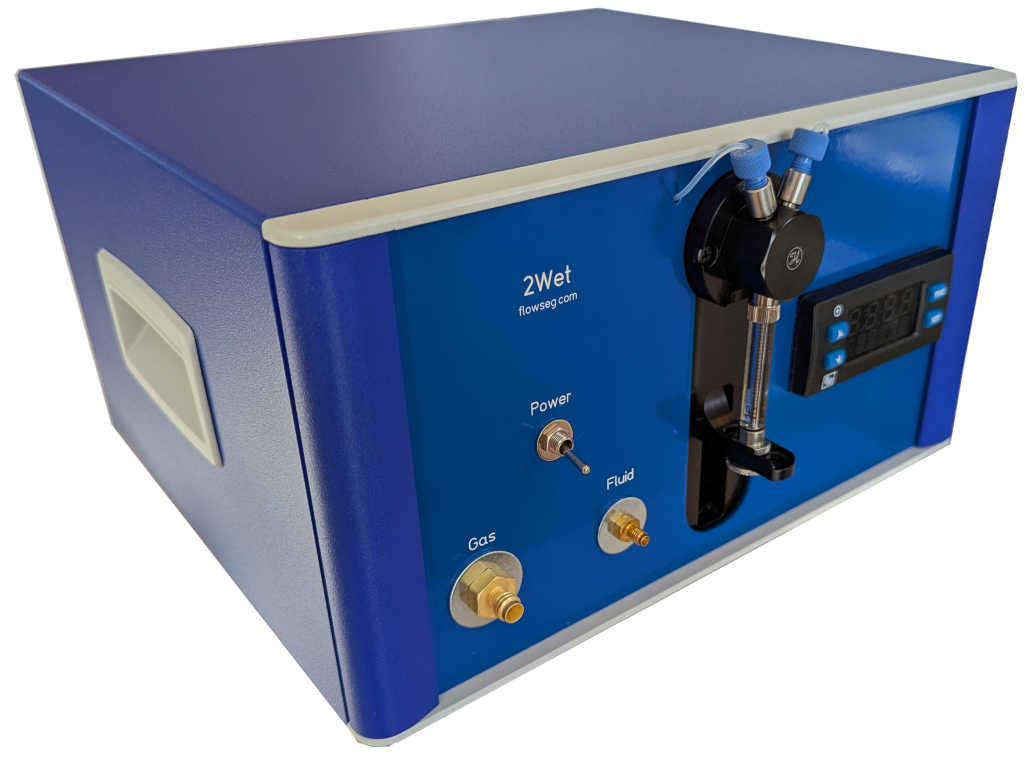

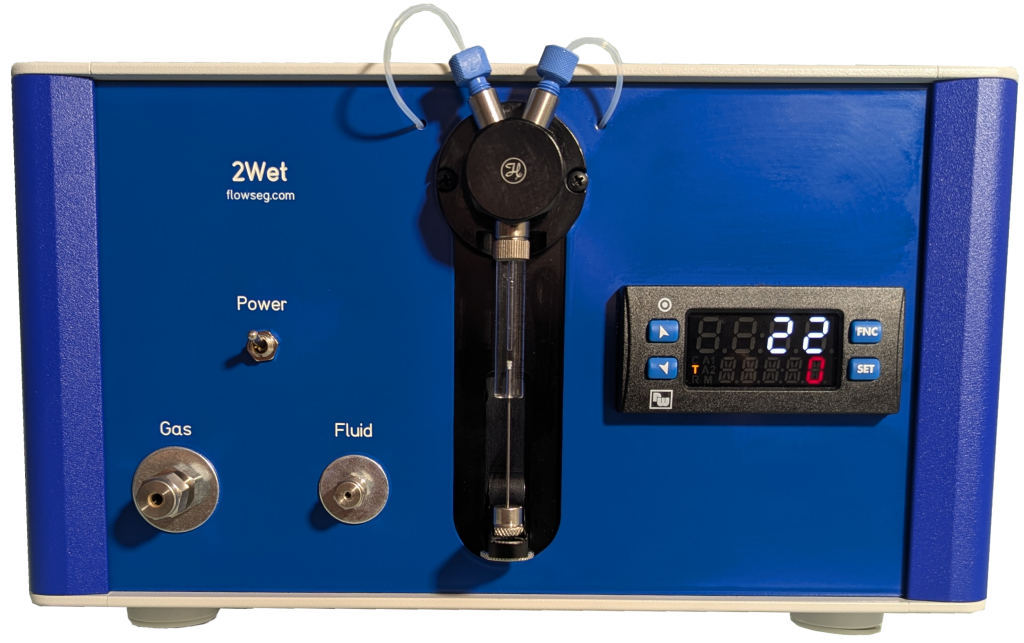

2Wet = Fluid

2WetControl the rate of any low-viscosity fluid and add to gas stream

Lowest dispense resolution 0.5 nl

Dispense speed from infinitely low u pto 150 ml/min - ranging from ppm level pH2O to pure steam

Custom fluids supported in software and device

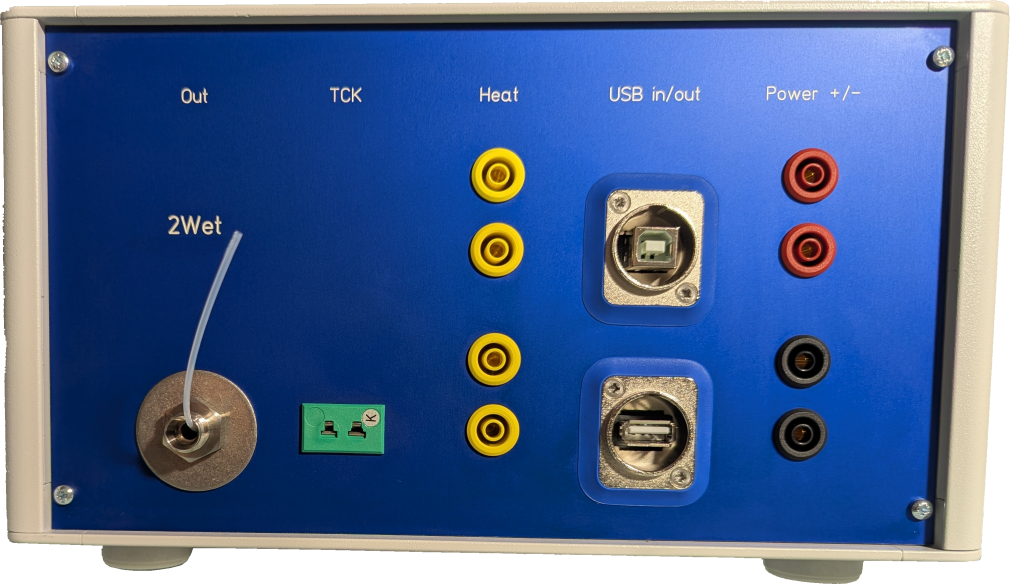

For high throughput, high pressure or high boiling points, Inquire options for high power and high temperature (up to 480ºC)


Steam and Evaporation

Can also accommodate ultrasound, piezoelectric, membrane evaporators as custom devices.


2Switch = Solenoid valve flow selector

Gas mixers and evaporators are limited by the kinetics of the gases. Changing the mixture from one setpoint to another is fast, but not instant. Where the speed of change is critical, tiny experiment volume, increased flow, working with increasing humidity (vs. decreasing humidity) can help, but sometimes mechanical selector works best. 3-way solenoid valve can instantly select the gas fed to the experiment, or two of such valves can invert the atmosphere on the two sides of two-atmosphere experiment. 2Switch has to solenoids by default, more as option.


Devices and form factor

Unlimited devices can be combined with USB, their outputs separate or connected together to form any mixture, any types of flow control system

Mixtures (also dynamic mixtures) as inputs (for re-dilution)

Device models have small footprint: 11x20x23 cm and 16x27x27 cm.

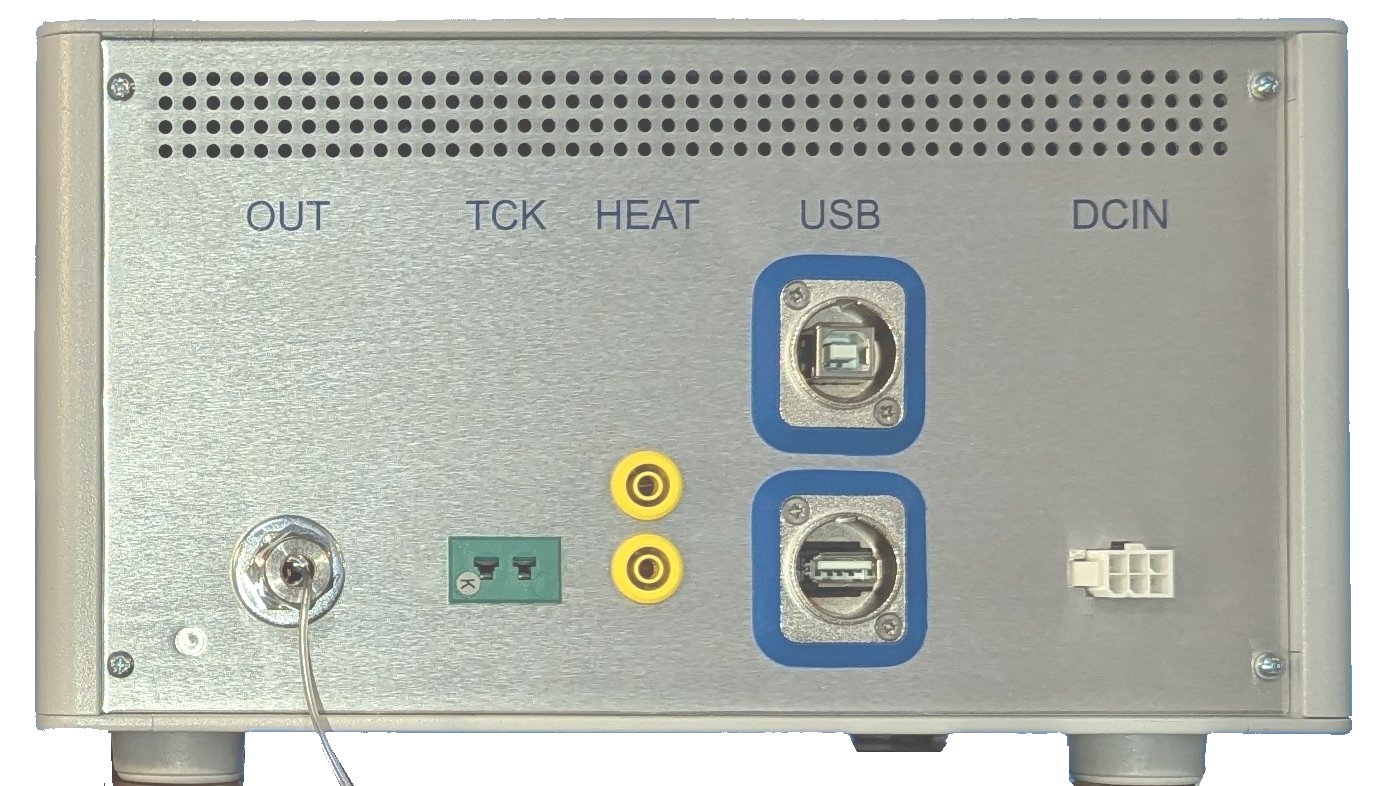

All devices work with inherently safe, low DC voltage (24 VDC) and include power adapters globally suitable (110 or 230 VAC, 50 or 60 Hz)


Flowseg software

Direct control of any connected device; mass flow controllers and fluid pumps

Unlimited segment programs with ramps and step for each device

Software calculates partial pressures, masses, and volumes in standard and user-defined reference conditions

Flows are logged as text and graph on screen and on disk

Each device has it's own program thread and parallel communication, enabling large setups to be operated from one software without lag


Service and support

Quick delivery times
